1. General Description

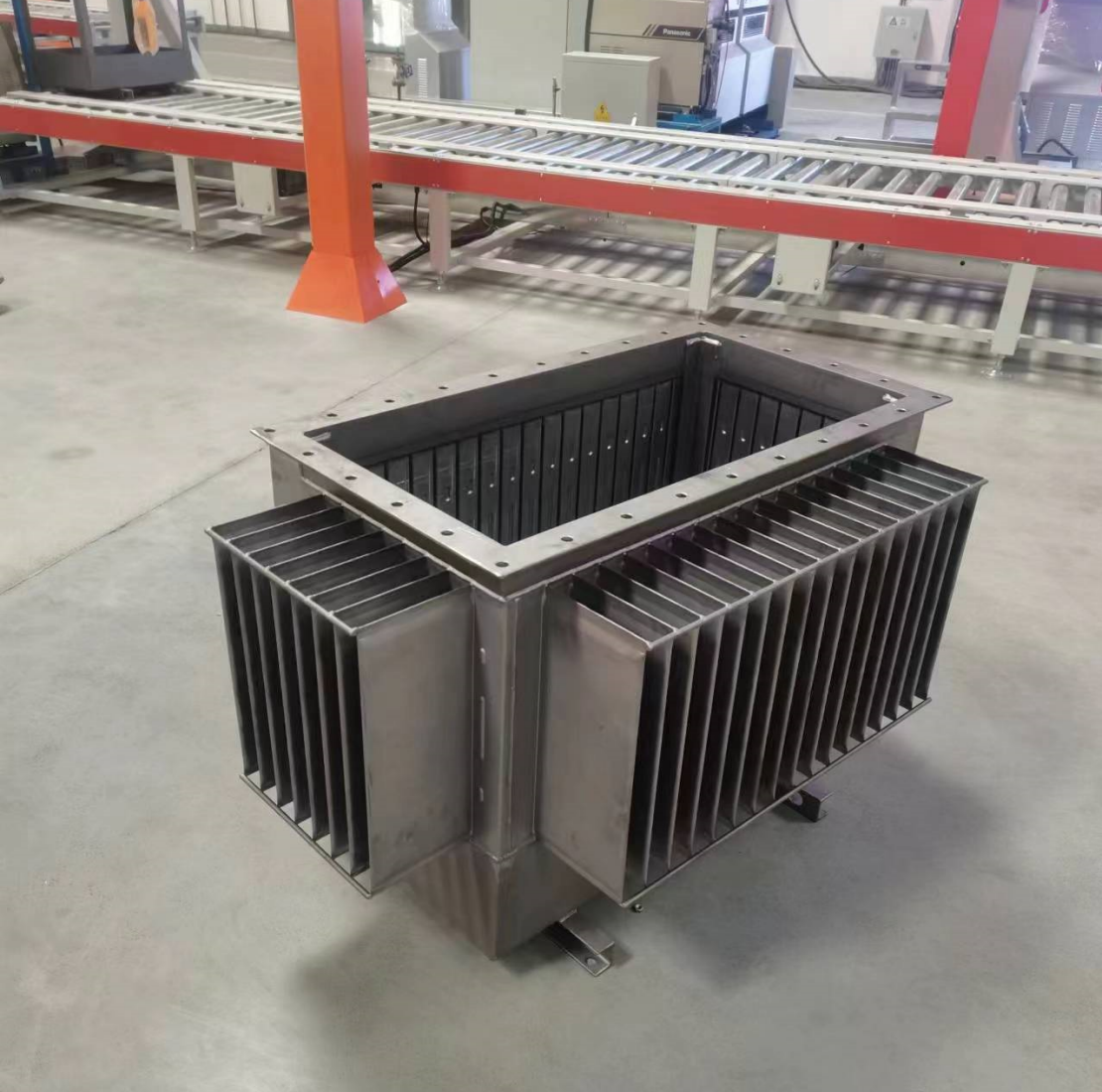

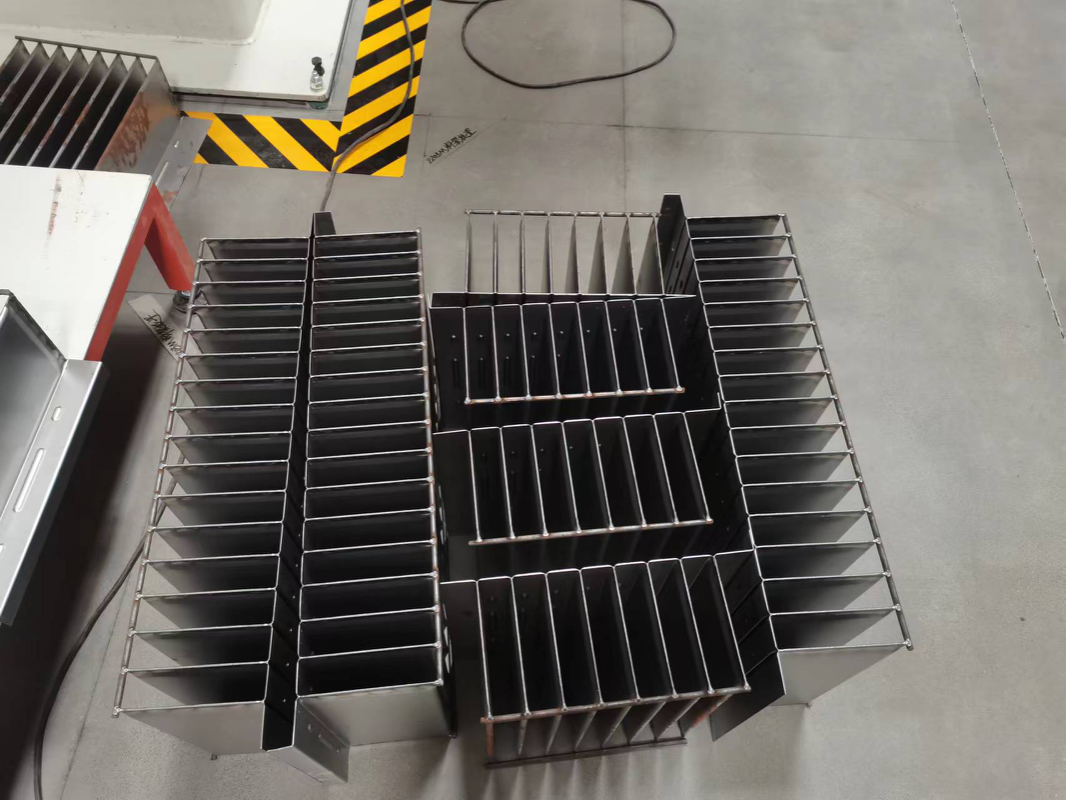

The transformer corrugated tank forming line is the special equipment for manufacturing transformer corrugated fin walls.
Our production line got the highly praise for its lasting performance, reliable quality and high efficiency by our customers who come from India, Thailand, Indonesia, Sudan and some other countries.

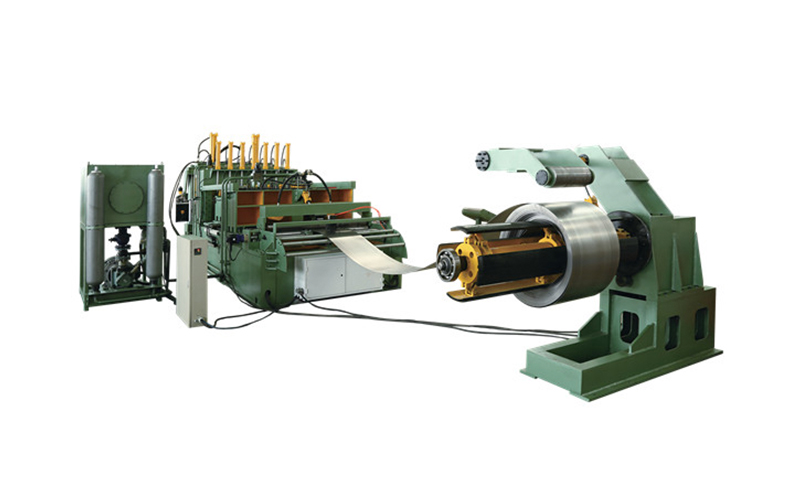

2. Parts of BW1600 transformer corrugated fin forming line
1) Automatic Decoiler Machine
2) Transformer Corrugated Radiator Former
3) Hydraulic Transformer Tank Fin Shearing and Hemming Machine
4) Automatic Corrugated Fin Seam Welding Machine
5) Hydraulic Station
6) PLC Control System
3. Main Technical Parameters
1) Corrugated Fin Width: 300mm-1600mm
2) Thickness of Steel Sheet: 0.5mm-1.75mm
3) Corrugation Height: 50mm-400mm
4) Hemming function is optional, hemming height: 20mm
5) Forming Speed: 3-5 fins/min
6) Corrugation Pitch: >=45mm
7) Corrugation Pitch Accuracy: +0.25mm
8) Fin Embossment: one or two (Optional)
9) Corrugation Inner Gap: 6mm
