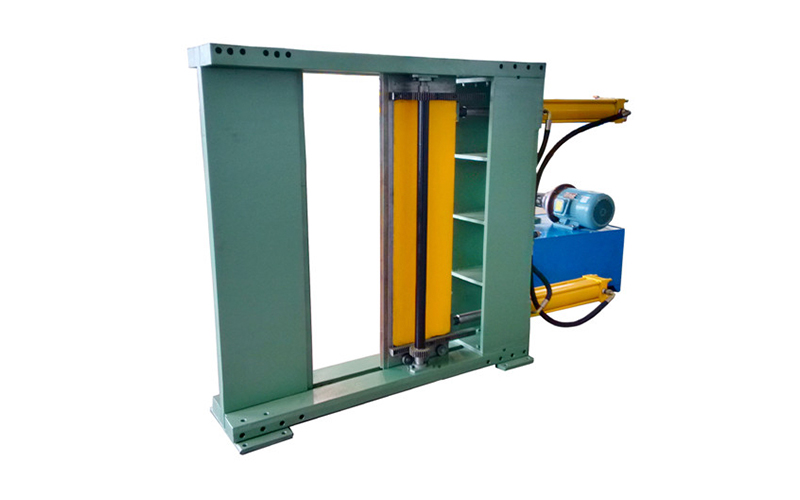

Hydraulic Vertical Bending Machine

This hydraulic vertical bending machine allows to form the 4 panels composing the complete transformer tank. Using this system it allows to eliminate 3 welding, save time of assembling and welding the tank with a reduction of leakage risks.

1.  General Description

      This hydraulic vertical bending machine allows to form the 4 panels composing the complete transformer tank. Using this system it allows to eliminate 3 welding, save time of assembling and welding the tank with a reduction of leakage risks.

2.  Main Units of Hydraulic Vertical Bending Machine:

     1) Bending system

     2) Safety system for the operator

     3) Hydraulic unit

     4) Control panel

3. Main Parameters of Hydraulic Vertical Bending Machine:

     1) Sheet thickness(Max.): 1.75mm

     2) Panel width(Max.): 1300mm

     3) Panel fin height: 50-400mm

     4) Distance between panels(Min.): 60mm

     5) Power: 5.5Kw

     6) Hydraulic pressure: 10MPa
