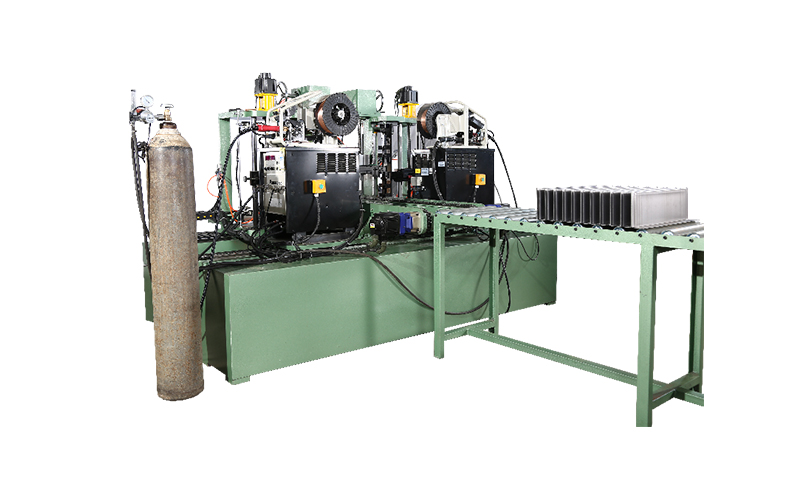

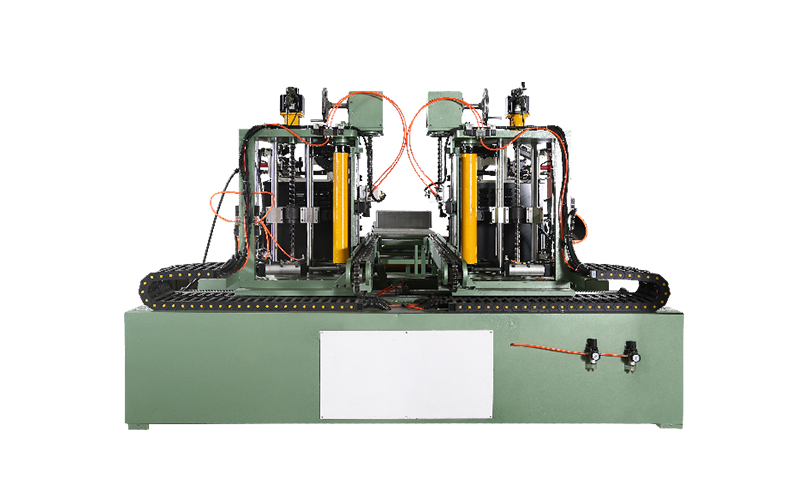

Transformer corrugated fin seam welding machine with bracing rod

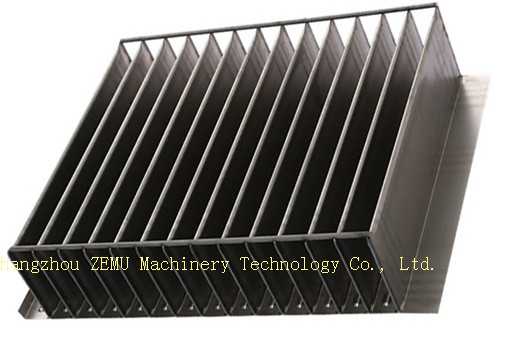

Automatic Transformer seam welding machine is used to weld the seam of corrugated fins.with bracing rod.Then save labour.

1. General Description
Automatic Transformer seam welding machine is used to weld the seam of corrugated fins.with bracing rod.Then save labour.

2. Main Units of  Seam Welding Machine:
1) Conveying table
2) Electric control, Schneider Brand
3) PLC control: Mitsubishi Brand
4) Welding torch: 2 sets, OTC Brand
5) Touch screen: Schneider Brand

3. Specific Technical Data
1) Welding power: 29KW
2) Welding fin height: 50~400mm
3) Suitable fin width: 300~1600mm
4) Air Pressure: 0.8MPa(User self-provided)
5) Welding system: OTC MAG Welder
